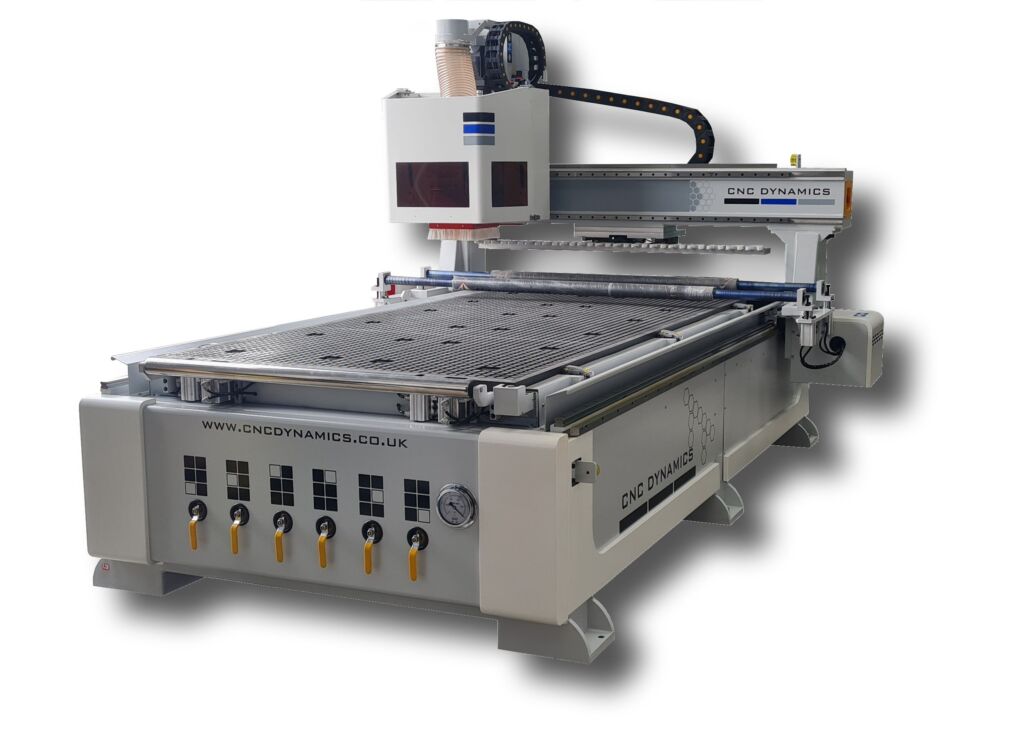

CNC DYNAMICS CDS-R

Engineered for Precision on Challenging Materials

The CNC Dynamics CDSR Roller Hold is specifically engineered for machining bowed, warped, or uneven sheet materials where traditional hold-down methods fall short.

Designed for demanding environments, this machine delivers consistent accuracy, secure material handling, and reliable performance across a wide range of applications.

Ideal Applications

Perfectly suited for:

  • Van lining manufacturing
  • Furniture production
  • Joinery workshops
  • General woodworking operations
  • Complex nesting applications

Advanced Material Control System

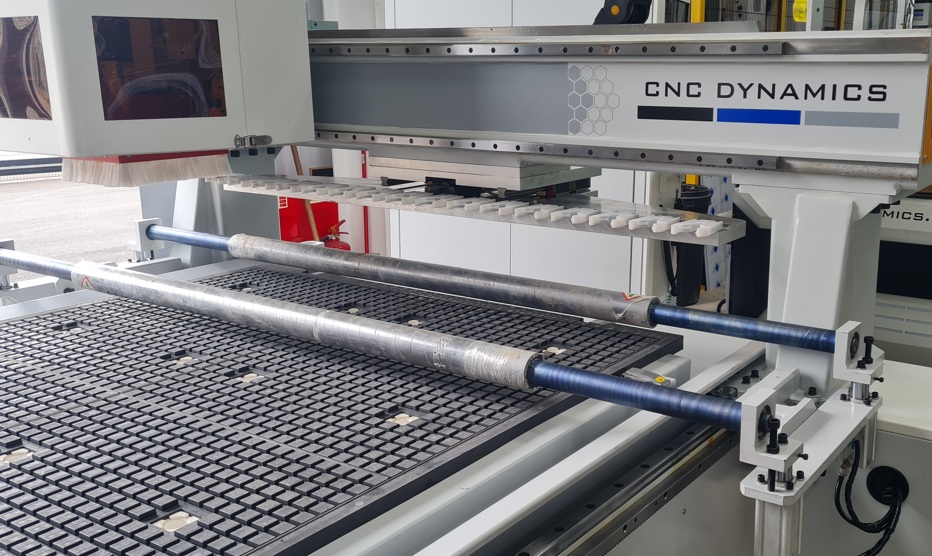

At the core of the CDSR Roller Hold is its heavy-duty double roller and material clamp system, designed to keep sheets securely positioned throughout the machining process.

  • Heavy-duty double roller system maintains constant downward pressure

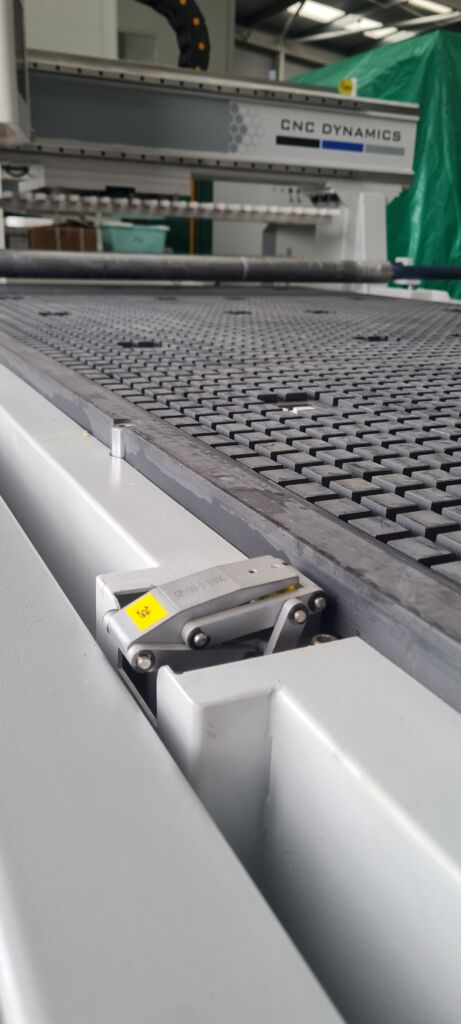

  • Integrated material clamps ensure maximum stability during cutting
  • Designed specifically for uneven or bowed materials

This system significantly reduces movement, improving cut accuracy and finish quality.

Automatic with Manual Override

The roller and clamp system operates automatically, streamlining workflow and reducing operator input.

However, for more complex or specialist jobs, the system can be manually overridden, giving you:

  • Greater control for bespoke applications
  • Increased machining flexibility
  • Enhanced capability for complex or one-off work

Optimised for Performance

For maximum hold-down efficiency, the CDSR Roller Hold is paired with a Becker 250 m³/hr heavy-duty vacuum pump system.

This combination ensures optimal material stability, particularly during high-speed or intricate nesting operations.

Machine Sizes Available

The CDSR Roller Hold is available in the following configurations:

  • 1325 format
  • 1530 format

Allowing you to choose the ideal size for your production requirements.

Key Benefits

  • Reliable machining of bowed and uneven materials
  • Improved accuracy and finish quality
  • Reduced material movement during cutting
  • Flexible operation with manual override capability
  • Ideal for high-demand and complex applications

Built for Demanding Production Environments

Whether you’re producing high volumes or handling specialist one-off jobs, the CDSR Roller Hold delivers the control, flexibility, and performance needed to keep production running efficiently.

Installation, Training, and Support Included

When you invest in the CNC Dynamics router, you get more than just a machine – you get full UK-based installation, commissioning, and operator training from our experienced in-house engineers at CNC Support Ltd. See more about our service and support offering here.

We provide ongoing technical support via phone, email, WhatsApp and remote login, plus optional preventative maintenance agreements to keep your CNC router performing at its best.

FAQ’S:

The CDSR Roller Hold is specifically designed to machine bowed, warped, or uneven sheet materials. Its heavy-duty double roller and material clamp system provides consistent pressure and stability, something standard vacuum-only machines can struggle with.

It excels with:

  • Bowed or uneven sheet materials
  • Plywood and MDF
  • Laminated boards
  • Materials used in van lining, furniture, and joinery applications

Training delivered with every CNC Dynamics router is fully tailored to your application, materials and production requirements.

We do not deliver generic, time-limited demonstrations. Instead, our engineers work directly with your team to program and machine the components you actually produce – ensuring real-world understanding and immediate production relevance.

The double roller and material clamps apply continuous pressure across the sheet, preventing lifting or movement during cutting. This results in cleaner cuts, better finishes, and reduced errors – especially on uneven materials.

Yes, the system operates automatically as standard, helping streamline production. However, it can also be manually overridden when needed, giving operators full control for more complex or specialised machining tasks.

Absolutely. The CDSR Roller Hold is well-suited for complex nesting applications, particularly when combined with a high-performance vacuum system to maximise material stability.

Yes. While the roller and clamp system provides additional hold-down, pairing the machine with a Becker 250 m³/hr vacuum pump significantly enhances performance, especially for high-speed or intricate work.

The CDSR Roller Hold is available in:

  • 1325 format
  • 1530 format

This allows flexibility depending on your workspace and production requirements.

This machine is particularly valuable for:

  • Van lining manufacturers
  • Furniture production companies
  • Joinery workshops
  • General woodworking businesses handling inconsistent materials

Yes. By securely holding uneven sheets in place, the machine reduces cutting errors and rejects, helping to improve yield and reduce costly material waste.

Yes, the CDSR Roller Hold is built for demanding production settings where consistency, reliability, and flexibility are essential.

Specifications

X-Axis Travel Variable
Y-Axis Travel Variable
Z-Axis Travel Variable
Table Size 1325 or 1530
Feed Rate X-Axis 0-40m/min
Feed Rate Y-Axis 0-40m/min
Rapid X/Y Axes 0-60m/min
