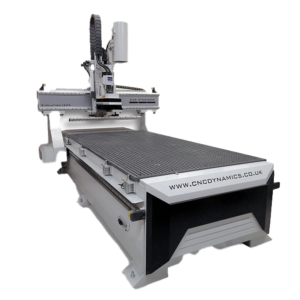

The CNC Dynamics EVO 1530 is a high-performance industrial CNC router engineered for advanced machining applications. Designed for manufacturers working with composites, engineered plastics and demanding materials, the EVO platform delivers exceptional speed, precision and reliability across a wide range of routing operations.

Engineered and supported by CNC Support, the EVO range is trusted by manufacturers across industries including aerospace supply chains, plastics fabrication, composite manufacturing and specialist engineering.

Key Features of the CNC Evolution 1530

Industrial CNC Router for Composites, Engineering Plastics and Advanced Manufacturing

• Working area: X-axis 1560 mm × Y-axis 3100 mm × Z-axis 300 mm

• 9 kW HSD automatic tool-change spindle with gantry-mounted 12-station tool magazine

• Programmable spindle speeds up to 24,000 rpm for a variety of materials

• Flat matrix vacuum table with configurable zones for secure material hold-down

• Automatic tool length setting for quick, accurate setup

• High feed rates up to 40 m/min and rapid traverse speeds up to 60 m/min

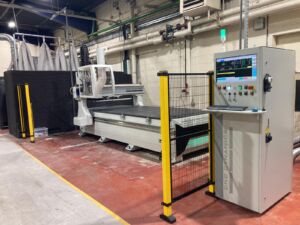

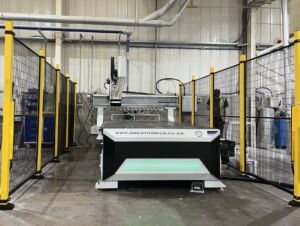

• Safety light beam system for operator protection

• Fully UKCA Compliant – Full guidance can be found here.

---

Engineered for High-Performance CNC Routing

The EVO range has been developed for manufacturers requiring greater machining capability, higher precision and advanced control functionality.

Features such as the heavy-duty structure, precision motion system and powerful spindle technology enable the EVO 1530 to maintain consistent accuracy even during demanding machining operations.

Combined with the latest CNC control technology, the machine offers excellent speed, repeatability and production reliability.

---

Applications & Materials

The EVO 1530 CNC router is widely used across industries including:

• Aerospace component machining

• Composite panel fabrication

• Plastic fabrication and engineering plastics machining

• Architectural cladding panel machining

• Industrial component manufacture

• Signage and display manufacturing

The CNC Dynamics EVO 1530 is engineered for precision machining across a wide range of materials, including:

• Carbon fibre composites

• Glass fibre composites

• Engineered plastics

• Acrylic and polymer sheets

• Phenolic materials

• Aluminium composite panels

• Calcium silicate boards

• Wood-based panels and laminates

Its robust mechanical design and advanced spindle technology allow manufacturers to machine demanding materials with unrivalled accuracy and finish quality.

---

Installation, Training, and Support Included

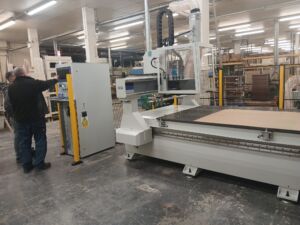

When you invest in the CNC Evolution 1530, you get more than just a machine – you get full UK-based installation, commissioning, and operator training from our experienced in-house engineers at CNC Support Ltd. See more about our service and support offering here.

We provide ongoing technical support via phone, email, and remote login, plus optional preventative maintenance agreements to keep your CNC router performing at its best.
