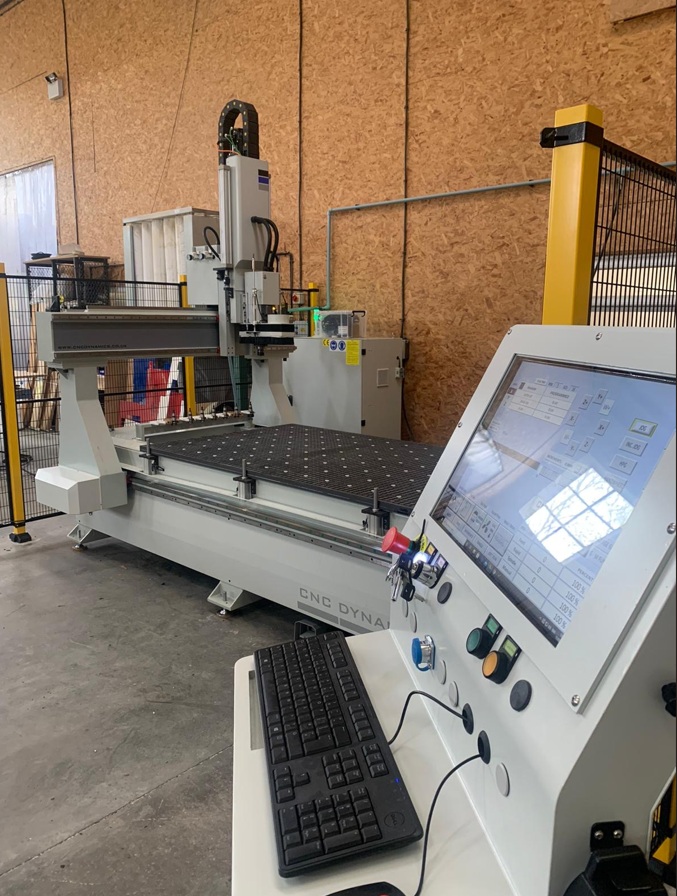

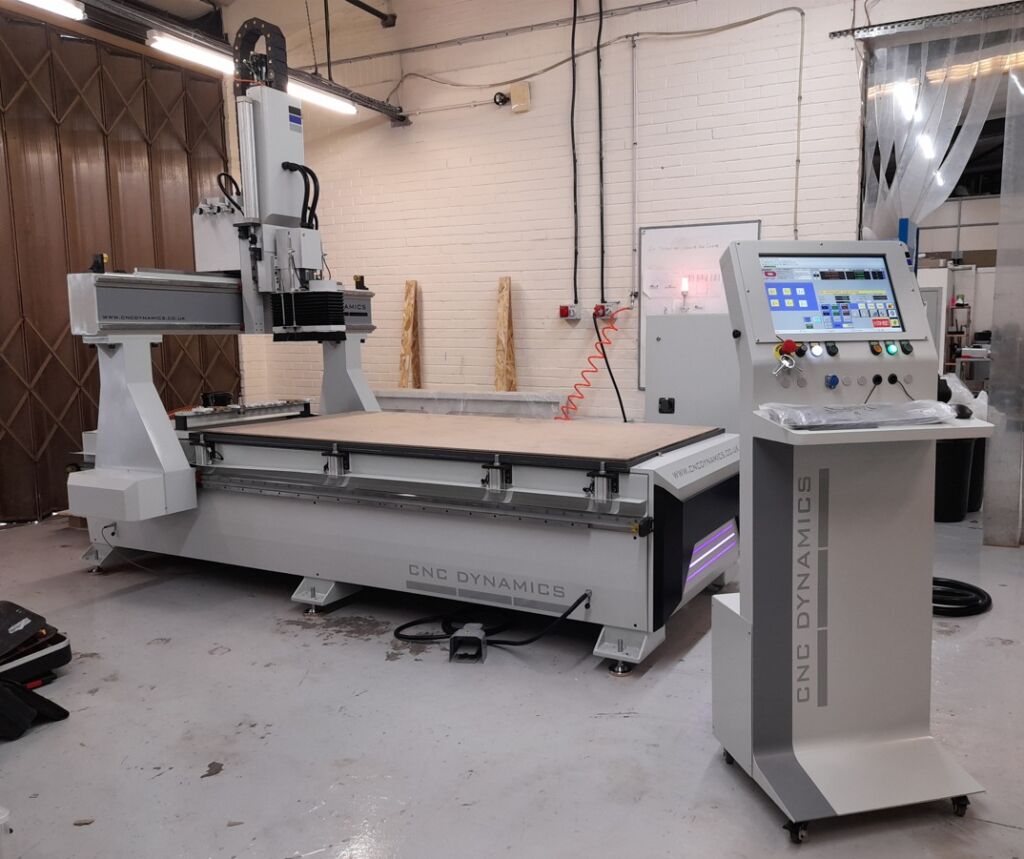

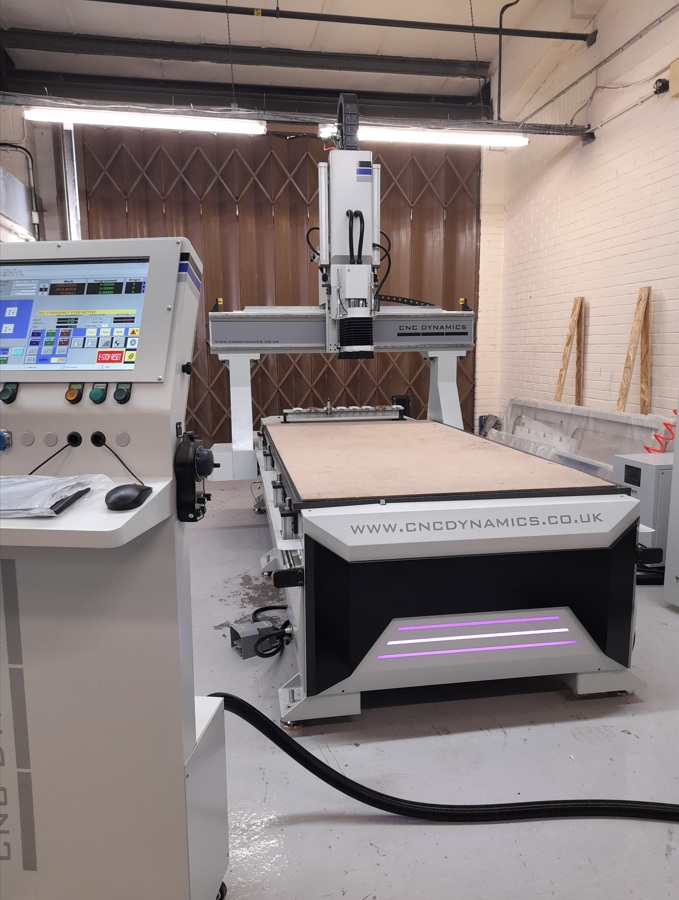

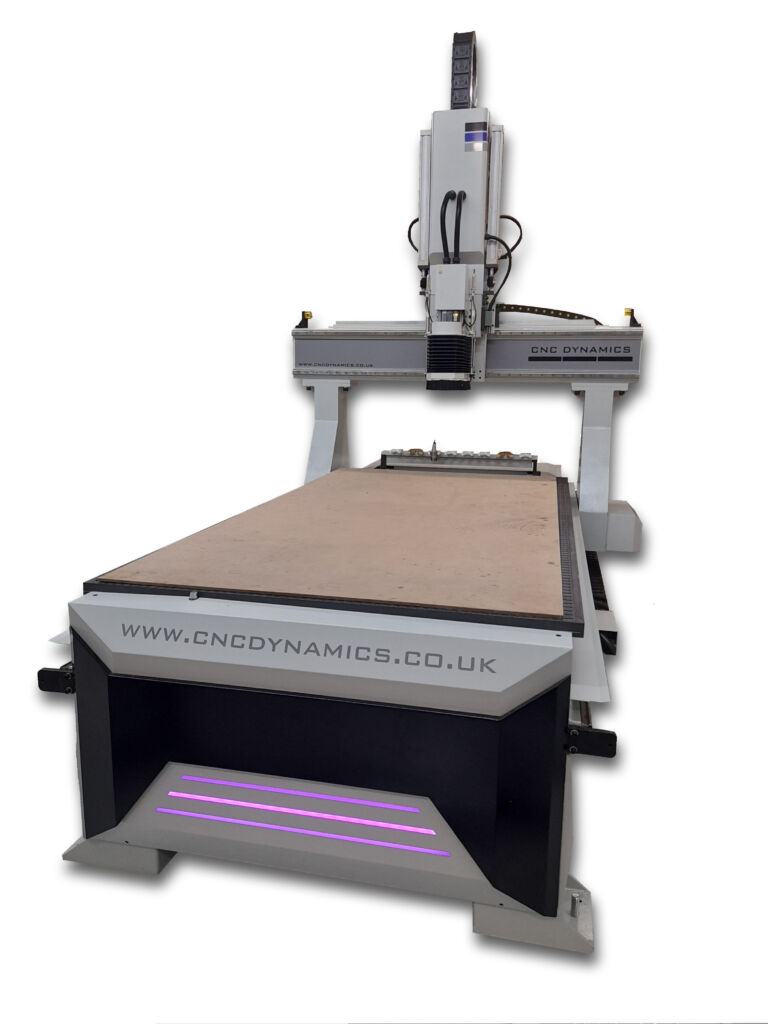

Built for demanding patternmaking and large-format 3D machining applications, the CNC Dynamics Patternmaker range combines heavy-duty construction, high-speed contouring and extended Z-axis capacity for accurate machining of foam, tooling board, composites, timber and non-ferrous materials.

Key Benefits of the CNC Dynamics Pattern Maker

Built for Complex Production Environments

The CNC Dynamics Patternmaker range is engineered for high-accuracy 3D contour machining where rigidity, spindle performance and Z-axis clearance are critical. Available in 3 axis, 4 axis or 5 axis configurations.

• Extended Z-axis options up to 600mm
• Large-format bed sizes
• HSK63 tooling systems
• High-speed HSD spindle technology
• Advanced Syntec control systems

---

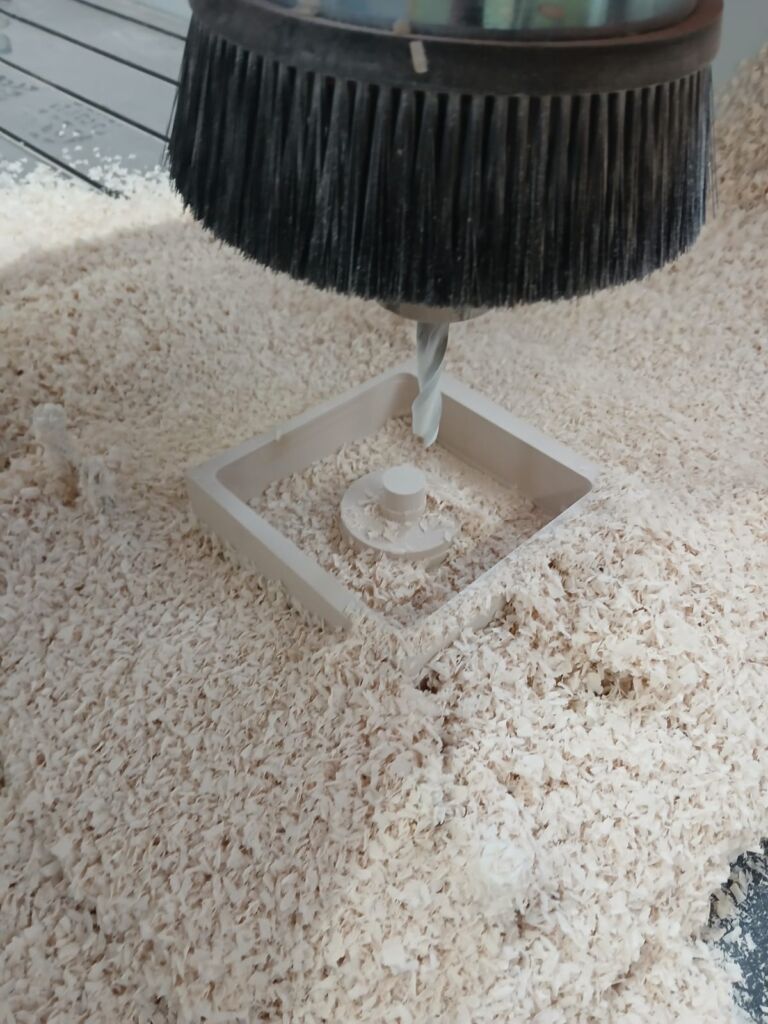

High-Speed 3D Contouring

The CNC Dynamics Patternmaker range is engineered for accurate, high-speed 3D contour machining across demanding tooling and patternmaking applications.

Designed with rigid machine construction, precision drive systems and advanced motion control, the Patternmaker delivers smooth interpolation and excellent surface finish quality when machining complex geometries, contours and detailed profiles.

Ideal for:

• Foundry patterns
• Composite tooling
• Foam machining
• Plug and mould manufacture
• Architectural modelling
• Automotive and aerospace tooling

The result is faster production, reduced hand finishing and consistently accurate machining performance.

---

Extended Z-Axis Capacity

Patternmaking and tooling applications often require machining deep profiles, large blocks and oversized components.

The Patternmaker range is available with extended Z-axis configurations, allowing increased clearance and machining depth for larger tooling applications without compromising rigidity or machining stability.

This makes the machine particularly effective for:

• Large-format foam machining
• Deep cavity moulds
• Composite plugs
• Timber and resin tooling board
• Large-scale 3D components

Combined with heavy-duty gantry construction, the machine maintains excellent accuracy even during demanding machining operations.

---

HSD Spindle Technology

The Patternmaker range is equipped with industrial HSD spindle technology, delivering the performance, reliability and precision required for continuous production environments.

Available spindle configurations include high-speed liquid-cooled systems with HSK63 tooling capability for demanding machining applications and high material removal rates.

As the UK’s HSD spindle partner, CNC Dynamics offers genuine engineering expertise, technical support and in-house spindle servicing to help maximise machine uptime and long-term reliability.

Benefits include:

• High-speed machining capability
• Excellent surface finish quality
• Reduced vibration
• Reliable continuous operation
• Faster production cycles

---

Advanced Syntec Control

The latest SYNTEC control system provides fast, intuitive machine operation with powerful processing capability for complex machining programs and large 3D toolpaths.

Designed for modern manufacturing environments, the control system offers improved workflow efficiency, smoother machine movement and user-friendly touchscreen operation.

---

Intelligent Vacuum & Workholding

Efficient workholding is essential for accurate machining and production efficiency.

The Patternmaker range is available with configurable vacuum zoning systems and tailored workholding solutions to suit a wide range of materials and production environments.

Vacuum zones can be controlled directly from the machine interface for faster setup times, improved workflow and easier operator control. These systems help improve material hold-down, reduce setup times and maximise machining accuracy across both nested and complex 3D machining applications.

---

Ideal Applications & Industries

The CNC Dynamics Pattern Maker is perfectly suited for:

• • Foundries
  • Toolmakers
  • Composite manufacturers
  • Automotive pattern production
  • Aerospace tooling
  • Marine plug & mould manufacture
  • Architectural model production

---

Available Options

• 3 / 4 / 5 axis
• Rotary axis
• Toolchanger capacities
• Vacuum or T-slot beds
• Extended bed lengths
• Safety enclosure options
• Dust extraction systems
• Automatic tool measurement

---

Installation, Training, and Support Included

When you invest in the CNC Dynamics Pattern Maker, you get more than just a machine – you get full UK-based installation, commissioning, and operator training from our experienced in-house engineers at CNC Support Ltd. See more about our service and support offering here.

We provide ongoing technical support via phone, email, WhatsApp and remote login, plus optional preventative maintenance agreements to keep your CNC router performing at its best.
